AsyncAPI

AsyncAPI is the event-driven counterpart to OpenAPI. An OpenAPI document describes endpoints you call and the responses you get back; an AsyncAPI document describes channels you connect to and the messages that flow over them — WebSocket streams, Kafka topics, MQTT subjects, server-sent events, and so on.

If your API pushes data instead of waiting to be asked for it, AsyncAPI is the format that describes it, and Scalar renders it as an API reference exactly like it renders OpenAPI.

Want to see one before you write one? The Scalar Galaxy Events reference is rendered straight from this AsyncAPI document.

Rendering a document

You can load AsyncAPI documents the same way you load OpenAPI documents:

Scalar.createApiReference('#app', {
  url: '/asyncapi.json'
})

Everything else works the same way too: pass the document as a URL or as content, render it alongside your OpenAPI documents in one reference, or add it to a Docs project with an asyncapi navigation entry.

Coming from OpenAPI

The concepts line up closely, they just have different names:

The biggest thing to know: action is written from the point of view of the application the document describes. receive means that application receives the message (you send it), and send means it sends one to you.

An example document

A minimal AsyncAPI 3.0 document with one server, one channel, one operation, and one message:

asyncapi: 3.0.0
info:
  title: Scalar Galaxy Events
  version: 1.0.0
servers:
  production:
    host: galaxy.scalar.com
    pathname: /ws/v1
    protocol: wss
    description: Production WebSocket server
channels:
  planetEvents:
    address: planets/{planetId}/events
    title: Planet Events
    summary: Real-time event stream for a single planet.
    parameters:
      planetId:
        description: The planet to watch.
    messages:
      planetUpdated:
        $ref: '#/components/messages/PlanetUpdated'
operations:
  subscribeToPlanetEvents:
    action: receive
    title: Subscribe to Planet Events
    channel:
      $ref: '#/channels/planetEvents'
    messages:
      - $ref: '#/channels/planetEvents/messages/planetUpdated'
components:
  messages:
    PlanetUpdated:
      title: Planet Updated
      summary: A planet was updated.
      payload:
        type: object
        properties:
          id:
            type: integer
          name:
            type: string
          updatedAt:
            type: string
            format: date-time

That renders as a Planet Events channel carrying a wss label, with Subscribe to Planet Events nested underneath it and the Planet Updated message collapsed below that.

The full document behind the Galaxy example is available at packages/galaxy/src/documents/asyncapi/3.0.yaml.

Supported versions

The reference renders against the AsyncAPI 3.x shape. Older documents are upgraded automatically on load, so you can pass a 1.x or 2.x document and it renders the same way — there's nothing extra to configure.

Behind the scenes the document is converted to the latest 3.x version (for example subscribe/publish operations nested under a channel are lifted into the top-level operations map, and a server url is split into host and pathname). The original version is preserved on the document as x-original-aas-version for reference.

What renders

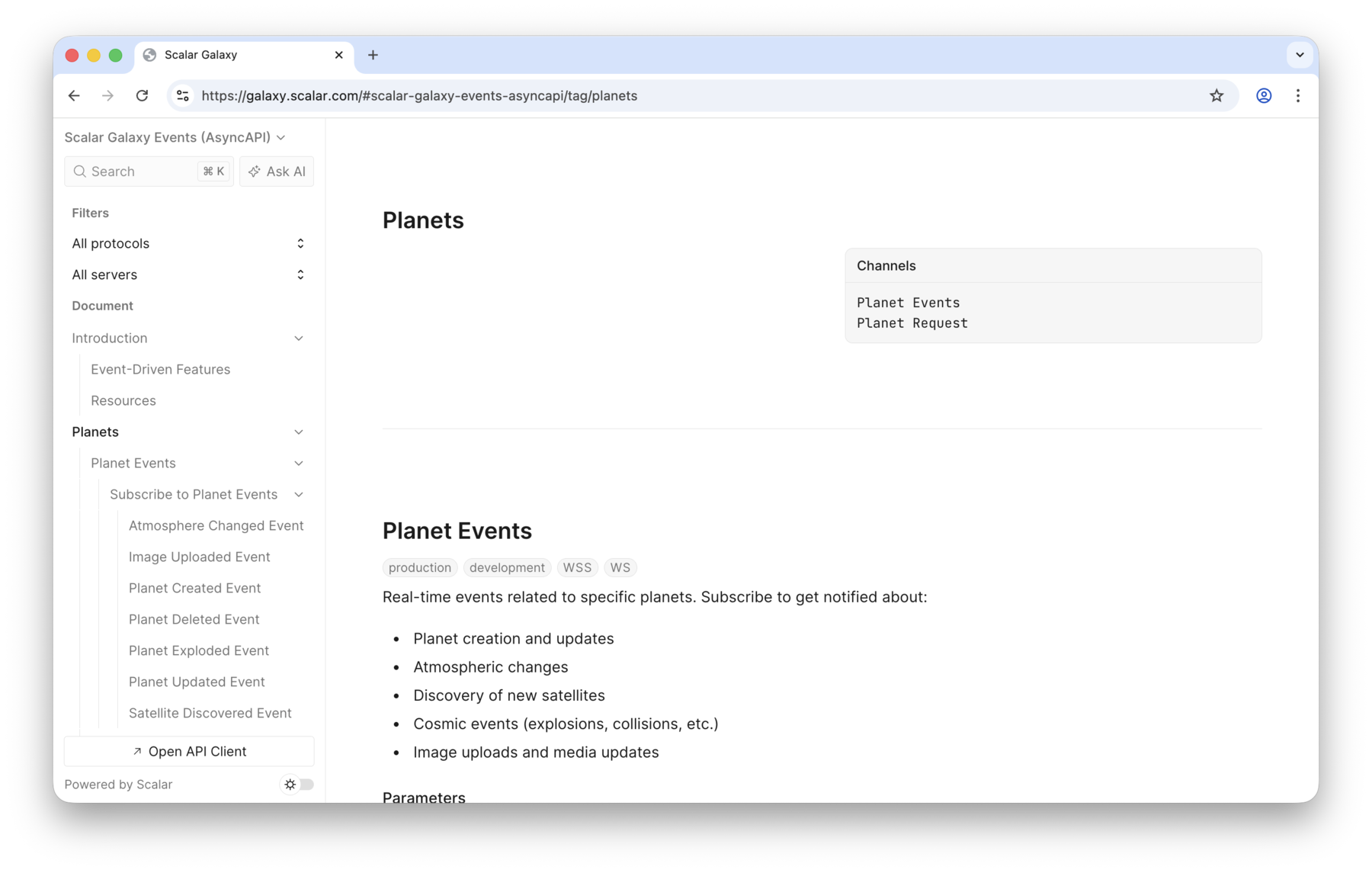

The reference renders the AsyncAPI document grouped by channel. For each channel you'll see:

• The channel title (or address) and description.
• Server and protocol labels for the channel: the servers it's available on (from document.servers, restricted to channel.servers when declared) and their protocols (for example wss, kafka).
• The channel address parameters.
• Each operation on the channel, nested beneath it, with its send/receive action, title, and summary/description.

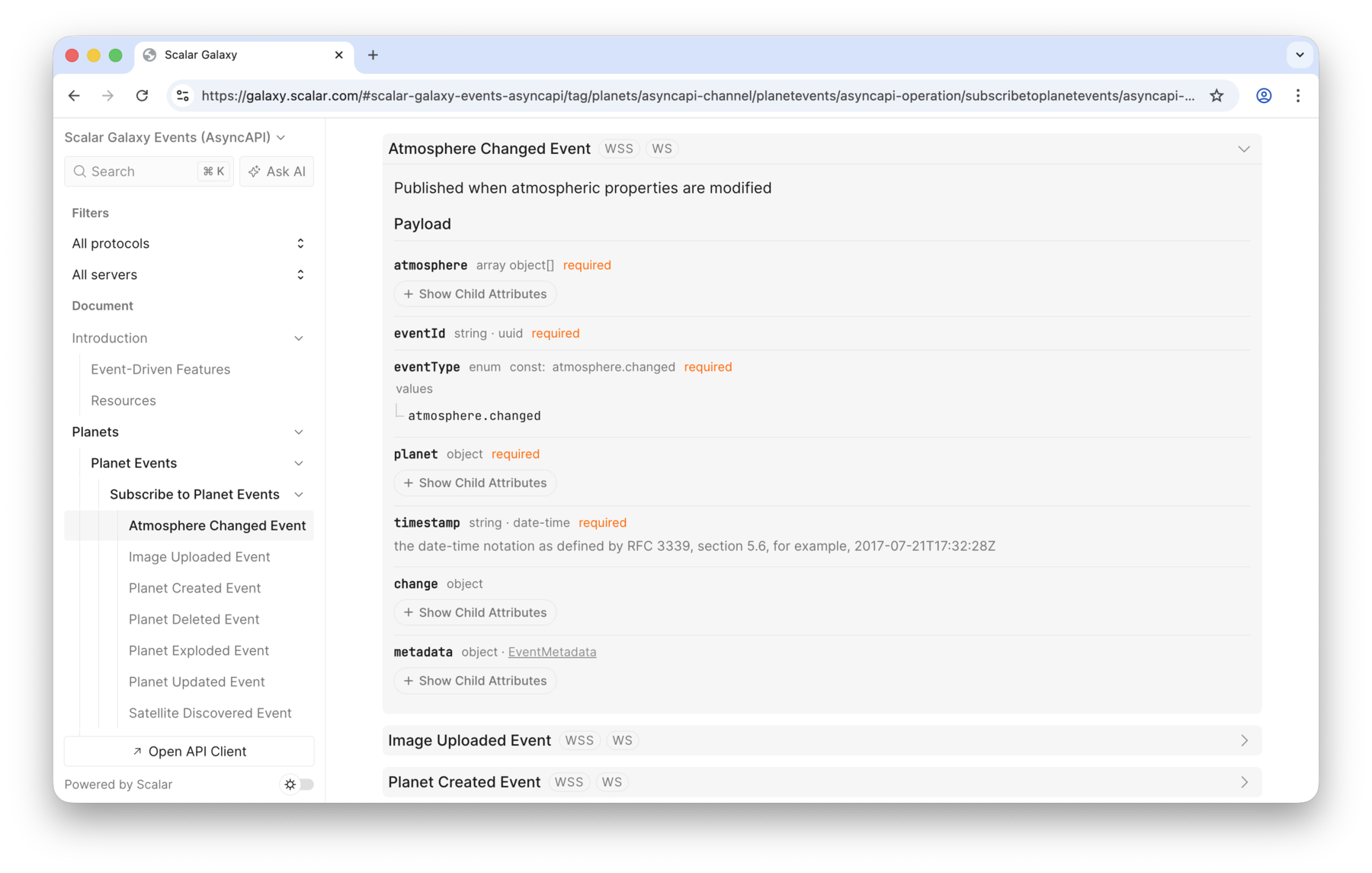

• Each message under its operation, shown as a collapsible accordion. The message header shows protocol labels for every protocol it's carried over — its channel's server protocols unioned with any protocols it declares its own bindings for. Expanding a message reveals its description and its headers and payload schemas. Messages start collapsed and stay in sync with the sidebar, so selecting a message in the navigation (or opening a deep link to it) expands it here too.

Reusable schemas defined under components.schemas are rendered in the Models section, just like OpenAPI.

Rendering works in both the modern and classic layouts.

Filtering by protocol and server

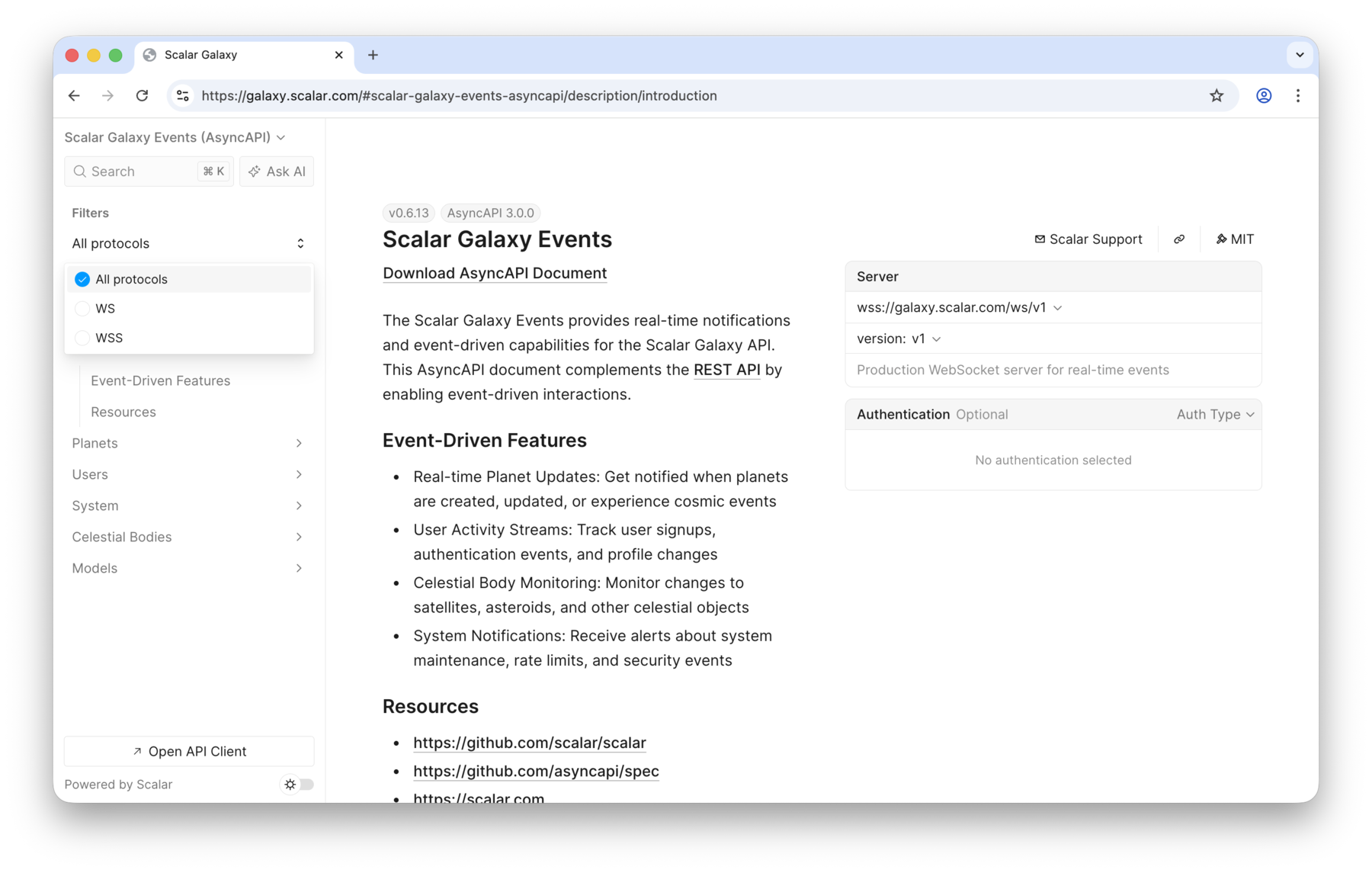

When a document defines more than one protocol or server, filter pickers appear at the top of the sidebar, stacked beneath the document picker and working just like it:

• Protocol — shown when the servers use more than one protocol (for example a wss WebSocket server alongside an mqtt or kafka server). Selecting a protocol hides operations that aren't reachable over a server using it.
• Server — shown when the document defines more than one server. Selecting a server hides operations whose channel isn't reachable through it.

Both filters operate on the navigation tree itself: operations that don't match are hidden, and any channel or tag left empty is dropped. Channels that declare no servers are treated as available on every server (and therefore every protocol). Choosing All protocols / All servers clears that filter, and the filters reset when you switch documents.

Each picker is only shown when there is more than one option to choose from.

Authentication

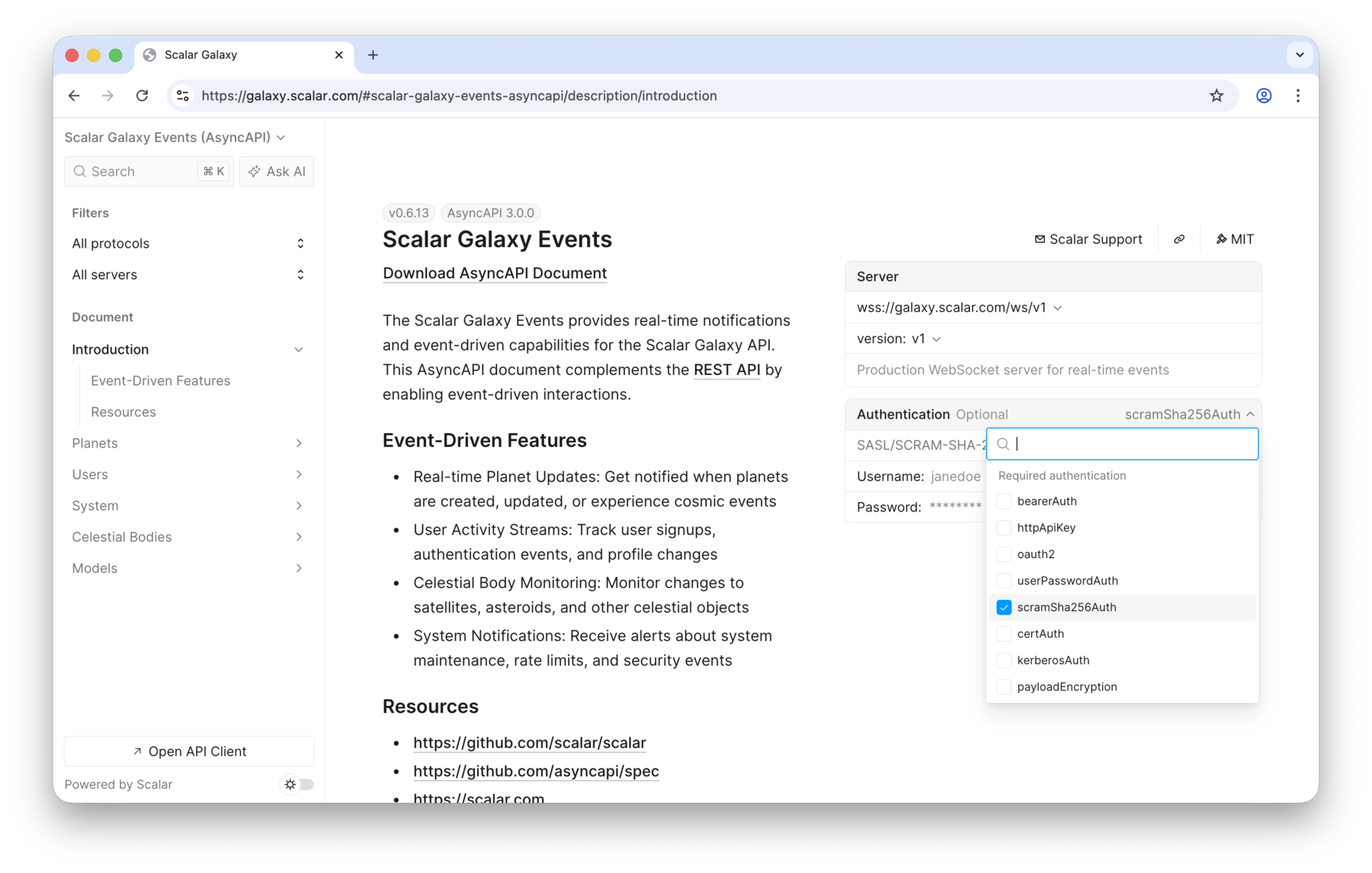

Document-wide authentication is rendered the same way as OpenAPI. When the document defines components.securitySchemes, an Authentication selector appears in the introduction, listing every scheme so you can fill in credentials.

Because AsyncAPI has no root-level security, the document-wide requirements are derived from the union of every server's security (a server applies to the whole connection). Operation- and channel-level auth is not surfaced yet — it needs more design and is tracked as a follow-up.

The selector fully supports the security scheme types that AsyncAPI shares with OpenAPI:

• http (for example bearer and basic)
• oauth2
• openIdConnect
• apiKey
• httpApiKey (a named key in query, header, or cookie; rendered as an apiKey)

The broker-specific scheme types have dedicated credential inputs too:

• userPassword, plain, scramSha256, scramSha512 — a username and password pair, just like HTTP basic.
• X509 — a client certificate and private key (PEM).
• symmetricEncryption, asymmetricEncryption — a single key value.
• gssapi — the Kerberos service name to authenticate against.

Credentials are kept in the auth store alongside the OpenAPI ones, so they persist while you browse and never leave the browser.

Mocking an event-driven API

The mock server serves an AsyncAPI document as live endpoints: WebSocket channels push generated messages when a client connects, and one-way HTTP channels are served as an SSE stream. Message payloads are generated from the schemas in the document, so you can build against the API before it exists.

Generating SDKs

The same document can generate a client. The Scalar SDK Generator turns each channel into a WebSocket connect method or an HTTP streaming method, with typed send and receive events. AsyncAPI input to the SDK Generator is experimental.
